Dockerで動かしてるGitLab CEにGitLab Runnerもコンテナで追加して、GitLab CE本体とRunnerを同じDocker上(別コンテナ)で動かして、初めてのGitLab Runnerお試し。

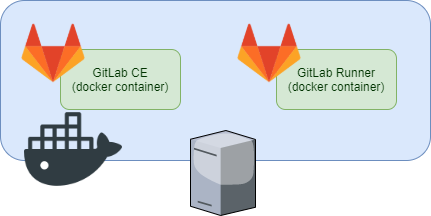

構成の概要としてはこんな感じ。
お題
以前つくったGitLab CE on Dockerに、Runnerも同じDocker上でうごかす。
$ sudo docker-compose ps Name Command State Ports -------------------------------------------------------------------------------- gitlab- /assets/wrapper Up (healthy) 22/tcp, 0.0.0.0:25000- compose_gitlab- >25000/tcp, 443/tcp, registry_1 80/tcp, 0.0.0.0:8443->8443/tcp
Runnerコンテナの起動
以下、runnerのコンテナ定義を追加
gitlab-runner: image: gitlab/gitlab-runner:v12.7.1 restart: always volumes: - /opt/gitlab-runner/config:/etc/gitlab-runner:Z - /var/run/docker.sock:/var/run/docker.sock
docker-compose up -d
すると、Runnerのコンテナが起動。
$ sudo docker-compose ps Name Command State Ports -------------------------------------------------------------------------------- gitlab- /assets/wrapper Up (healthy) 22/tcp, 0.0.0.0:250 compose_gitlab- 00->25000/tcp, registry_1 443/tcp, 80/tcp, 0. 0.0.0:8443->8443/tc p gitlab- /usr/bin/dumb-init Up compose_gitlab- /entryp ... runner_1
こんな感じ。
Runnerをただ動かすだけなら、特になんでもない。
Runnerの設定
GitLab CEでトークン確認

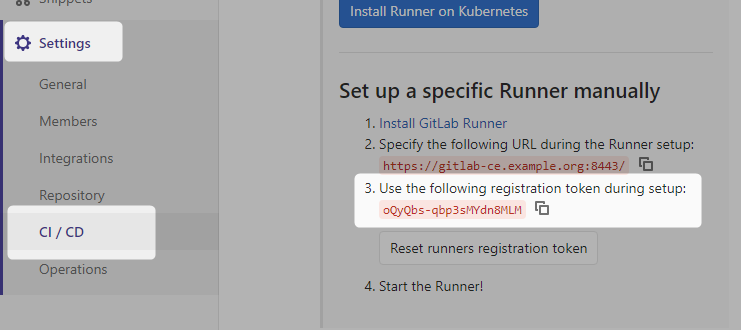

Runnerを試してみるプロジェクトのSettings -> CI/CD -> RunnersをExpandして、"registration token"を確認する。
(※: プロジェクト単位でなくGitLab CE全体の設定も可能だけど、ひとまずプロジェクト単位でお試し)
Runnerのregister実行
コンテナのbashを起動し、登録コマンドであるgitlab-runner register
を実行する。
雑に動かすとぽろぽろとエラーが出てくる。
connect: no route to host
$ sudo docker-compose exec gitlab-runner bash root@1ccbe6c850f1:/#
root@1ccbe6c850f1:/# gitlab-runner register Runtime platform arch=amd64 os=linux pid=29 revision=003fe500 version=12.7.1 Running in system-mode. Please enter the gitlab-ci coordinator URL (e.g. https://gitlab.com/): https://gitlab-ce.example.org:8443/ # GitLab CEのURL入力 Please enter the gitlab-ci token for this runner: oQyQbs-qbp3sMYdn8MLM # webで確認したregistration tokenを入力 Please enter the gitlab-ci description for this runner: [1ccbe6c850f1]: sample-runner # runnerの名前 Please enter the gitlab-ci tags for this runner (comma separated): # tagは(とりあえず)空欄 ERROR: Registering runner... failed runner=oQyQbs-q status=couldn't execute POST against https://gitlab-ce.example.org:8443/api/v4/runners: Post https://gitlab-ce.example.org:8443/api/v4/runners: dial tcp 192.168.0.21:8443: connect: no route to host PANIC: Failed to register this runner. Perhaps you are having network problems root@1ccbe6c850f1:/#
おや…
root@1ccbe6c850f1:/# curl -I http://gitlab-ce.example.org/yum-repo/ HTTP/1.1 200 OK :
gitlab-ce.example.org
に対して全く通信できないわけではなさそう。(ホストOS上で動作してるhttpdサーバへは普通にアクセスできる)
いろいろ確認した結果、「コンテナAの中から」「ホストOSのIPアドレスと-p
でpublishしたポート番号指定で別のコンテナBに対して」直接通信はできないっぽい。
Dockerの通信仕様というか、Dockerの通信を制御しているiptablesの仕様というか、、だいたいその辺の理由。たぶん。
というわけで、RunnerのコンテナからGitLab CEのコンテナへのコンテナ間通信で、HTTPS通信するためにFQDNでアクセスしたいけど、うまい方法を思いつかないので…
GitLab CEのコンテナ名をFQDNと同じにしよう(・∀・)
(「コンテナ間通信はコンテナ名でアクセスできる」動作によって、FQDNでRunnerからGitLab CEにアクセスする)
--- a/docker-compose.yml +++ b/docker-compose.yml @@ -1,7 +1,7 @@ --- version: '3' services: - gitlab-registry: + gitlab-ce.example.org: image: gitlab/gitlab-ce:12.7.4-ce.0 hostname: gitlab-ce.example.org restart: always
これでdocker-compose up -d
[zaki@registry gitlab-compose]$ sudo docker-compose ps Name Command State Ports -------------------------------------------------------------------------------- gitlab- /assets/wrapper Up (health: 22/tcp, 0.0.0.0:2 compose_gitlab- starting) 5000->25000/tcp, ce.example.org_1 443/tcp, 80/tcp, 0.0.0.0:8443->844 3/tcp gitlab- /usr/bin/dumb-init Up compose_gitlab- /entryp ... runner_1
こんな感じ。
healthy
になるまで待つ。
x509: certificate signed by unknown authority
[zaki@registry gitlab-compose]$ sudo docker-compose exec gitlab-runner bash root@32511c7a3352:/# gitlab-runner register Runtime platform arch=amd64 os=linux pid=29 revision=003fe500 version=12.7.1 Running in system-mode. Please enter the gitlab-ci coordinator URL (e.g. https://gitlab.com/): https://gitlab-ce.example.org:8443/ Please enter the gitlab-ci token for this runner: oQyQbs-qbp3sMYdn8MLM Please enter the gitlab-ci description for this runner: [32511c7a3352]: sample-runner Please enter the gitlab-ci tags for this runner (comma separated): ERROR: Registering runner... failed runner=oQyQbs-q status=couldn't execute POST against https://gitlab-ce.example.org:8443/api/v4/runners: Post https://gitlab-ce.example.org:8443/api/v4/runners: x509: certificate signed by unknown authority PANIC: Failed to register this runner. Perhaps you are having network problems root@32511c7a3352:/#
今度のエラーはわりと予想通り。
gitlab-runner: image: gitlab/gitlab-runner:v12.7.1 restart: always volumes: - /opt/gitlab-runner/config:/etc/gitlab-runner:Z - /var/run/docker.sock:/var/run/docker.sock - /opt/gitlab-cert:/etc/gitlab-runner/certs
GitLab CE本体でも使用している証明書ファイルが/opt/gitlab-certにあるので、Runnerでも使い回す。
volumes
を使ってマウントするホストのディレクトリに、/opt/gitlab-cert:/etc/gitlab-runner/certs
を追加。
まぁRun GitLab Runner in a containerのドキュメントよくよく見たら"Installing trusted SSL server certificates"の章に書いてあるんだけど…()
成功編
$ sudo docker-compose exec gitlab-runner bash root@365f57ba0691:/# gitlab-runner register Runtime platform arch=amd64 os=linux pid=28 revision=003fe500 version=12.7.1 Running in system-mode. Please enter the gitlab-ci coordinator URL (e.g. https://gitlab.com/): https://gitlab-ce.example.org:8443/ Please enter the gitlab-ci token for this runner: oQyQbs-qbp3sMYdn8MLM Please enter the gitlab-ci description for this runner: [365f57ba0691]: sample-runner Please enter the gitlab-ci tags for this runner (comma separated): Registering runner... succeeded runner=oQyQbs-q Please enter the executor: docker, ssh, docker-ssh+machine, custom, docker-ssh, parallels, shell, virtualbox, docker+machine, kubernetes: shell Runner registered successfully. Feel free to start it, but if it's running already the config should be automatically reloaded!
お、うまくいった。
(executorの設定は、docker
やkubernetes
など試したくなる項目あるけど、とりあえずshell
を設定している)

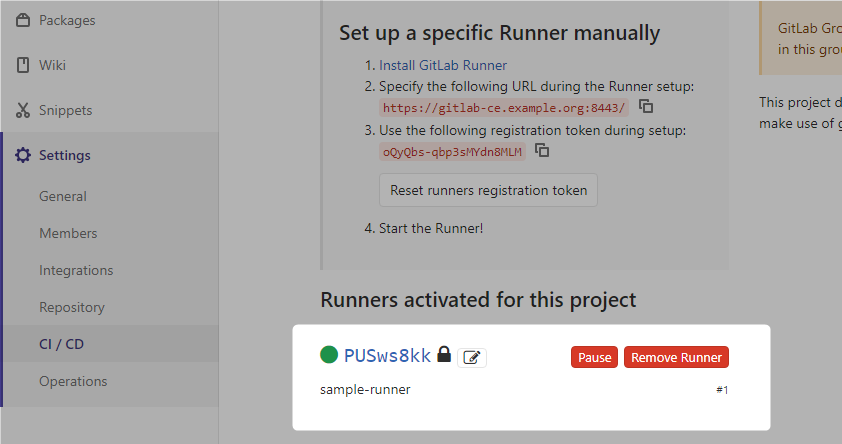

webで設定の"Runners activated for this project"の部分を見ると、追加したRunnerの項目が追加されてることを確認できる。
追加した設定は、GitLab Runnerコンテナ内の/etc/gitlab-runner/config.toml
に作成される。これはDockerのボリューム設定によってホストOSの/opt/gitlab-runner/config/config.toml
になっている。
concurrent = 1 check_interval = 0 [session_server] session_timeout = 1800 [[runners]] name = "sample-runner" url = "https://gitlab-ce.example.org:8443/" token = "PUSws8kkxEnz5Qn4npye" executor = "shell" [runners.custom_build_dir] [runners.cache] [runners.cache.s3] [runners.cache.gcs]
Runnerお試し
こんなファイルを用意
--- stages: - runner-test job01: stage: runner-test script: - id - uname -r - ps auxwwf - hostname - ls -alF
pushする
% git add .gitlab-ci.yml % git commit -m "add: gitlab-ciお試し" % git push

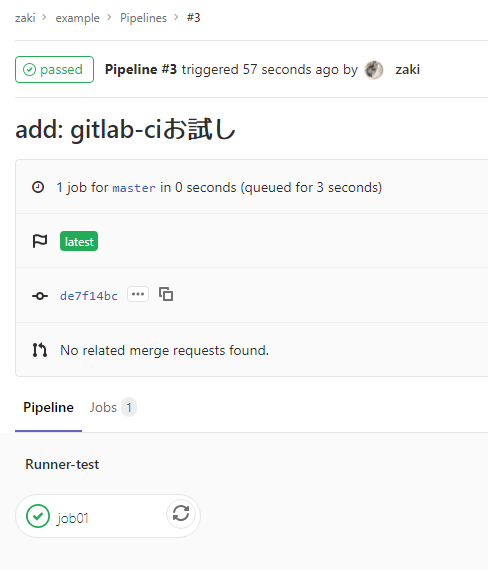

すると、GitLab CE上でpipelineが動き始める。 (中身はコマンド実行するだけなのですぐ完了する)
statusの列("passed"などのリザルト)はリンクになってて、内容を確認できる。
jobの詳細で、CIで実行された処理の出力を確認できる。
$ id uid=999(gitlab-runner) gid=999(gitlab-runner) groups=999(gitlab-runner) $ uname -r 3.10.0-1062.9.1.el7.x86_64 $ ps auxwwf USER PID %CPU %MEM VSZ RSS TTY STAT START TIME COMMAND root 14 0.0 0.0 18496 1940 pts/0 Ss+ 22:09 0:00 bash root 1 0.0 0.0 164 4 ? Ss 22:08 0:00 /usr/bin/dumb-init /entrypoint run --user=gitlab-runner --working-directory=/home/gitlab-runner root 6 0.1 0.5 137040 19668 ? Ssl 22:08 0:02 gitlab-runner run --user=gitlab-runner --working-directory=/home/gitlab-runner root 109 0.0 0.0 49260 1628 ? S 22:41 0:00 \_ su -s /bin/bash gitlab-runner -c bash --login gitlab-+ 110 0.0 0.0 9908 1544 ? Ss 22:41 0:00 \_ bash --login gitlab-+ 114 0.0 0.0 10040 908 ? S 22:41 0:00 \_ bash --login gitlab-+ 118 0.0 0.0 34392 1528 ? R 22:41 0:00 \_ ps auxwwf $ hostname 365f57ba0691 $ ls -alF total 4 drwxrwxr-x. 3 gitlab-runner gitlab-runner 57 Mar 12 22:41 ./ drwxrwxr-x. 4 gitlab-runner gitlab-runner 40 Mar 12 22:41 ../ drwxrwxr-x. 6 gitlab-runner gitlab-runner 113 Mar 12 22:41 .git/ -rw-rw-r--. 1 gitlab-runner gitlab-runner 136 Mar 12 22:41 .gitlab-ci.yml -rw-rw-r--. 1 gitlab-runner gitlab-runner 0 Mar 12 22:41 README.md
こんな感じで、gitlab-runner register
時にshell
を指定しているので、「Runnerが動いてるホスト上でshell実行」されていることが確認できた。
今回Runner自体をコンテナで実行してるので、「Runnerが動いているホスト」が、Runner自身のコンテナ内になってる。
全体のdocker-compose.yml
--- version: '3' services: gitlab-ce.example.org: image: gitlab/gitlab-ce:12.7.4-ce.0 hostname: gitlab-ce.example.org restart: always ports: - "8443:8443" - "25000:25000" environment: GITLAB_OMNIBUS_CONFIG: "external_url 'https://gitlab-ce.example.org:8443'; nginx['listen_port']=8443; gitlab_rails['registry_enabled']=true; registry_external_url 'https://gitlab-ce.example.org:25000'" volumes: - /opt/gitlab-reg/config:/etc/gitlab:Z - /opt/gitlab-reg/logs:/var/log/gitlab:Z - /opt/gitlab-reg/data:/var/opt/gitlab:Z - /opt/gitlab-reg/registry:/var/opt/gitlab/gitlab-rails/shared/registry:Z - /opt/gitlab-cert:/etc/gitlab/ssl gitlab-runner: image: gitlab/gitlab-runner:v12.7.1 restart: always volumes: - /opt/gitlab-runner/config:/etc/gitlab-runner:Z - /var/run/docker.sock:/var/run/docker.sock - /opt/gitlab-cert:/etc/gitlab-runner/certs
shell
じゃなくてdocker
についてはこちら
(dindでさらにコンテナ間通信がcompose管理外の構成)
dind(Docker in Docker)については、ホストの/var/run/docker.sock
をボリューム設定で共用してる関係で、何も問題なかった。
というかdocker run -p host-port:container-port
したコンテナ、ホストOS外のリモートからの接続は問題ないけど、同じホスト上の別のDockerコンテナからは「ホストのアドレス:port」だと接続できないのね…知らなかった…(というか、何かセオリーあるのかな)

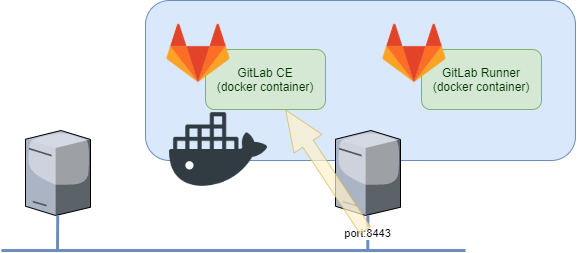

"GitLab CE contaienr"は-p
を使ってホストOSからのポートフォワードを設定
この設定でリモートからのアクセスが可能になる。
でもこの構成だと、別のコンテナからホストOSのIPアドレス:ポート番号のアクセスができなかった。(コンテナ間通信はdocker networkの設定でイケる)
